HDMI Analog Audio Converter

HDMI Analog Audio Converter

Model: HAC-100
Regular price $39.95
Regular price Sale price $39.95
Sale Sold out
Express Checkout
View full details

HDMI Analog Audio Converter

  • The device accepts HDMI input and provides 2 outputs: HDMI Out and Analog Audio Out.
  • HDMI Out from the converter connects for your TV and the Analog Audio from the converer connects to your TV SoundBox.

HDMI Resolution-----------------25/30fs4Kx2K/24/50/60fs/1080i/p720P/576i/p/480i/P

Support Video Color Format--------------------------------24bit/deep coclor 30bit, 36bit

Audio Output----------------------------------------SPDIF + COAXIAL + 3.5 stereo (R/L)

Max Bandwidth----------------------------------------------------------------------340MHz

Max Baud Rate---------------------------------------------------------------------10.2Gbps

Input/Output TMDS signal----------------------------------------0.5 to 1.5Volts p-p(TTL)

Input/Output DDC signal---------------------------------------------------5Volts p-p(TTL)

Max working current-----------------------------------------------------------------500mA

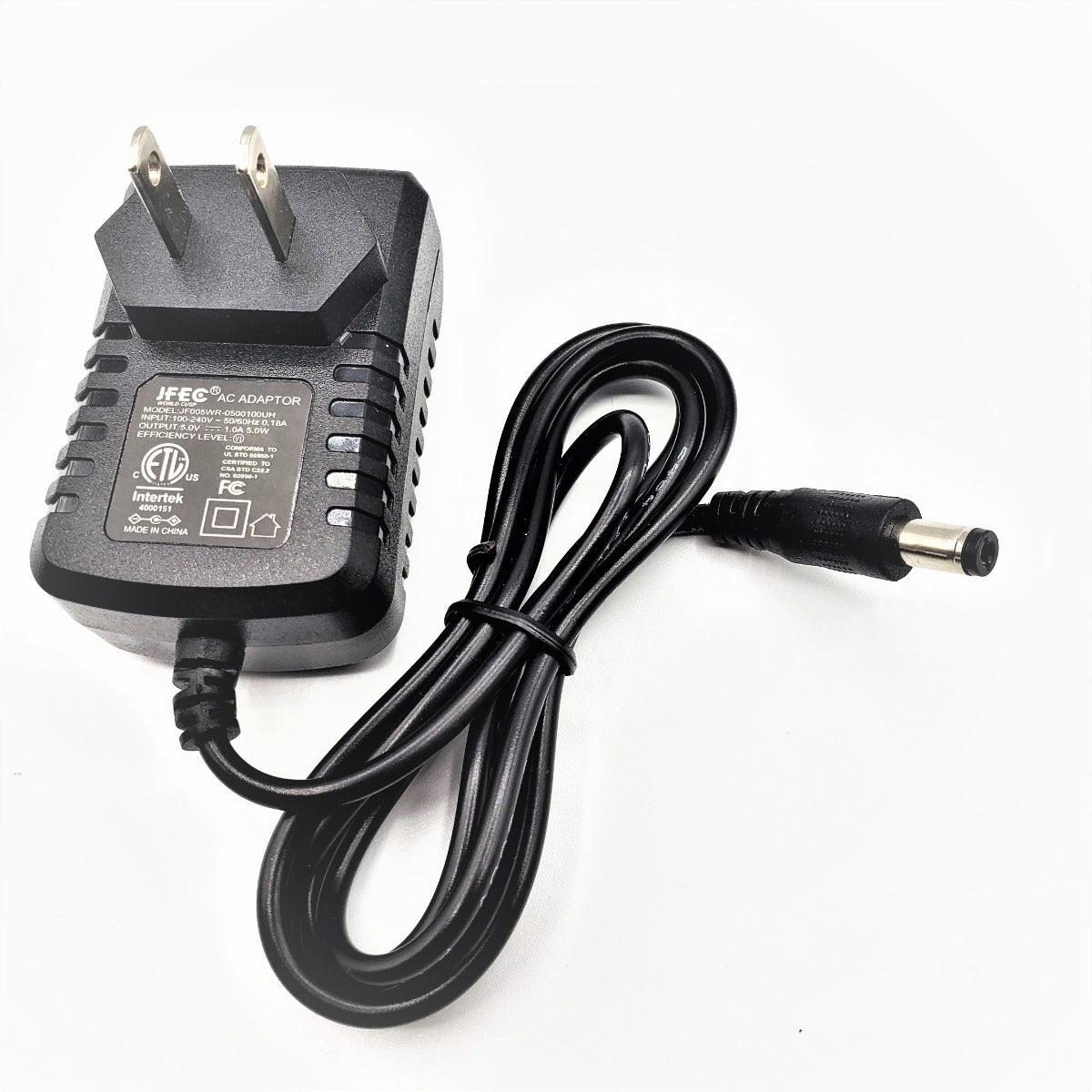

Power adapter----------------------Input: AC(50/60Hz) 100V-240V; Output: DC 5V/1A

Operating Temperature---------------------------------------------(-15 to +55 degree C)

Operating Humidity range--------------------------------5 to 90%RH (No Condensation)

Dimension (L x W x H)---------------------------------------------70.5 x 60.5 x 20 (mm)

Connecting your SEREONIC TV SoundBox
